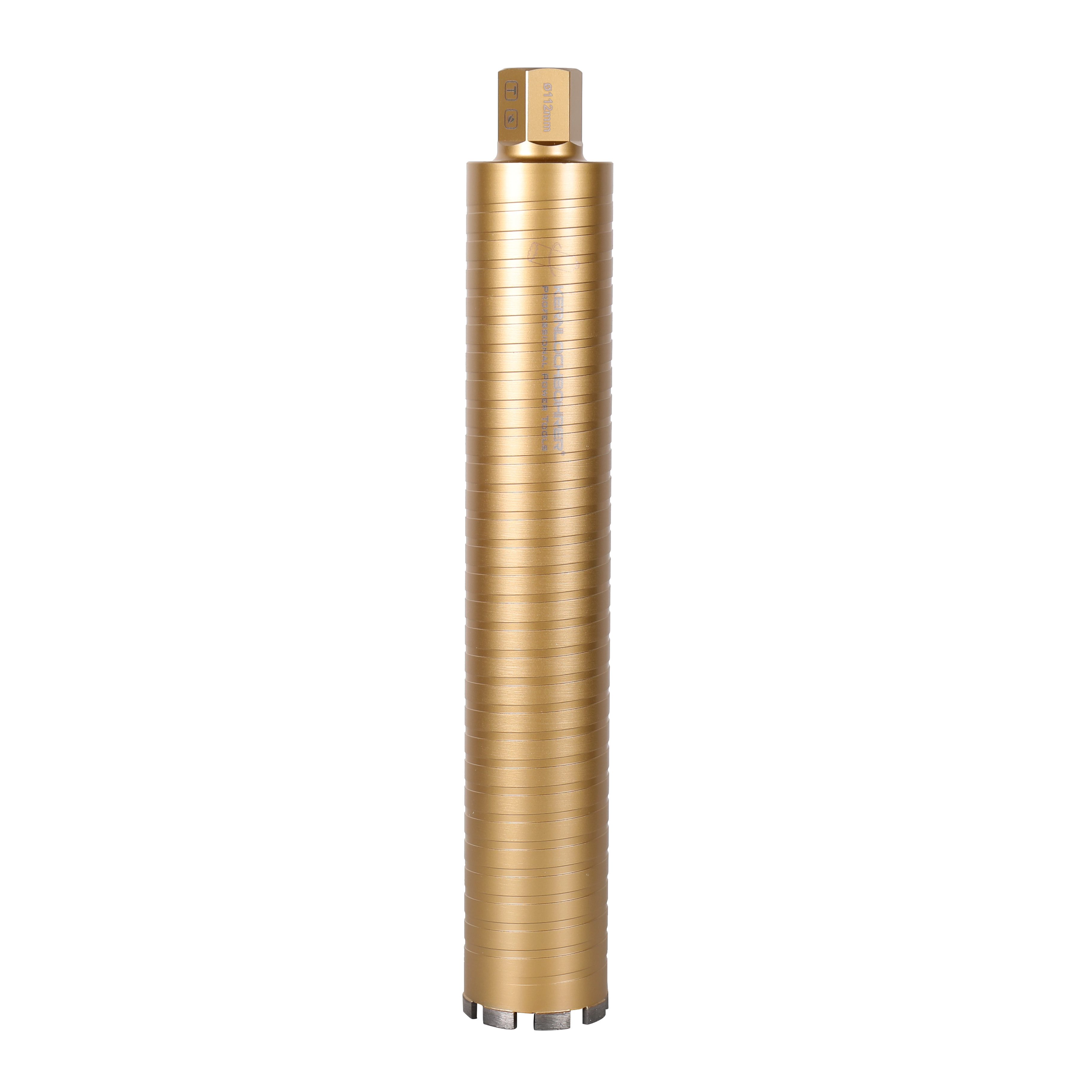

Diamantbohrkrone Softschlag Ø 112 mm x 450 mm
Diameter:
Ø 112 mm
Diamanttrockenbohrkrone für armierten Beton mit Staubabsaugung und Softschlagmaschinen
€120.46
Gross
€143.35
Available between 27.01. and 29.01.
Product number:
1112
| Produkttyp: | Diamantbohrkrone |
|---|---|
| Modell: | Diamantbohrkrone Softschlag |
| Einsatzbereich: | Trockenbohrung |
| Anwendungsbereich: | Beton, Stahlbeton und Ziegel |
| Material: | Segmente lasergeschweißt |
| Bohrer-Ø: | 112 mm |
| Innen-Ø: | 105 mm |
| Arbeitslänge: | 450 mm |
| Schnittstelle Maschine: | 1 1/4 UNC |
| Segmentanzahl: | 9 |
| Segmenthöhe: | 10 mm |
Product number:
1112
Description

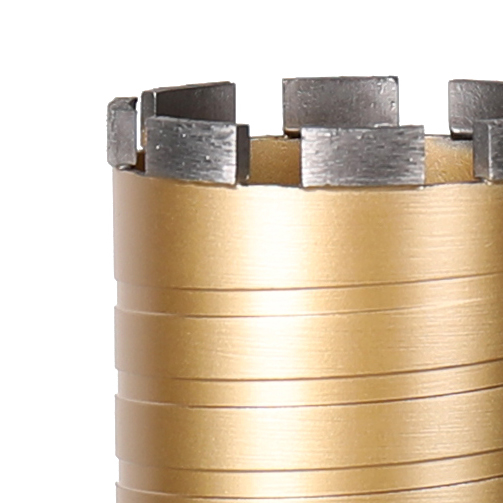

Diamond core bit Soft Impact Ø 112 mm - length 450 mmExperience the outstanding advantages of our diamond core bits, which have been specially developed for demanding core drilling technology with soft impact function and efficient dry drilling of reinforced concrete:Precise core drilling technology with soft impact function:Our core bits offer precise drilling performance and a long service life thanks to high-quality diamond segments with a segment height of 10 mm. This not only guarantees improved cutting performance, but also consistently precise results with every drilling operation.Efficient dry drilling of reinforced concrete:The versatility of our diamond dry core bits comes into its own in combination with soft impact machines. They are ideal for concrete, reinforced concrete and brick and offer an efficient solution for demanding drilling projects. Without soft impact, the core bits are suitable for precise drilling in brick, lightweight concrete, screed and Ytong.Important note on use:Our diamond dry core bits must never be used with impact drills or rotary hammers with an impact function. Instead, they should only be used with core drills with a soft-impact function to ensure optimum performance and service life of the core bit.Important note on optimising dust extraction and protecting the drilling segments:When using our diamond core bits in combination with soft-impact machines, it is crucial to retract the core bit after reaching a maximum drilling depth of 5 cm so that the hoover has the opportunity to efficiently extract the crushed material. This step is not only important for a clean environment, but above all to protect the drill segments and increase the service life of the drill bit. Regular retraction every 5 cm ensures that the drilling segments are not overloaded with drilling dust, which significantly extends the service life of the crown.Essential use of dust extraction:When drilling in reinforced concrete, the use of an effective dust extraction system is essential. Without effective extraction, the drilling segments will inevitably be damaged by drilling dust and hot steel chips. We recommend using a suitable wet/dry vacuum cleaner, such as the NTS-38 with HEPA filter (item no. 6442), to minimise harmful dust and protect the service life of the drill.Regulation on the use of hoovers:Please note that since the introduction of the new dust limits in January 2019, the use of a dust extraction system during the drilling process has been expressly prescribed. This regulation not only serves to protect the machine and the user from harmful dust and contamination, but also significantly improves working conditions, contributes to safety and is essential for efficient and precise drilling work.Invest in the future of your drilling projects with our diamond core bits - the perfect combination of advanced technology, durability and outstanding performance.
Properties
| Produkttyp: | Diamantbohrkrone |
|---|---|
| Modell: | Diamantbohrkrone Softschlag |
| Einsatzbereich: | Trockenbohrung |
| Anwendungsbereich: | Beton, Stahlbeton und Ziegel |
| Material: | Segmente lasergeschweißt |
| Bohrer-Ø: | 112 mm |
| Innen-Ø: | 105 mm |
| Arbeitslänge: | 450 mm |
| Schnittstelle Maschine: | 1 1/4 UNC |
| Segmentanzahl: | 9 |
| Segmenthöhe: | 10 mm |
